Butterfly Table
Ash // Blackened Steel
Beveled Edge
Top // Ash
Batten // Blackened Steel
Butterfly Hinge
Blackened Steel

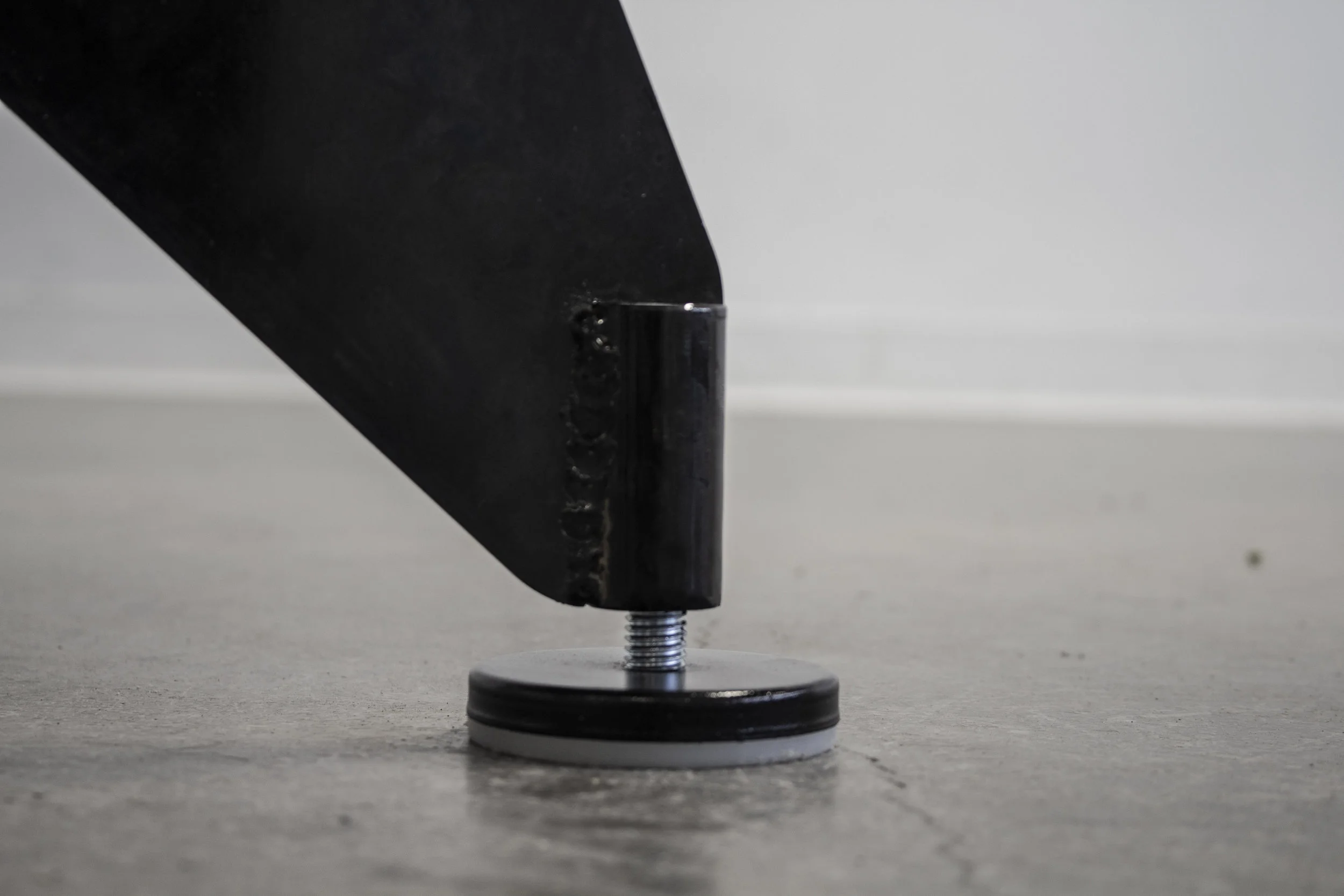

Leveling Foot
Leg // Blackened Steel
Foot // Black Gloss Finish

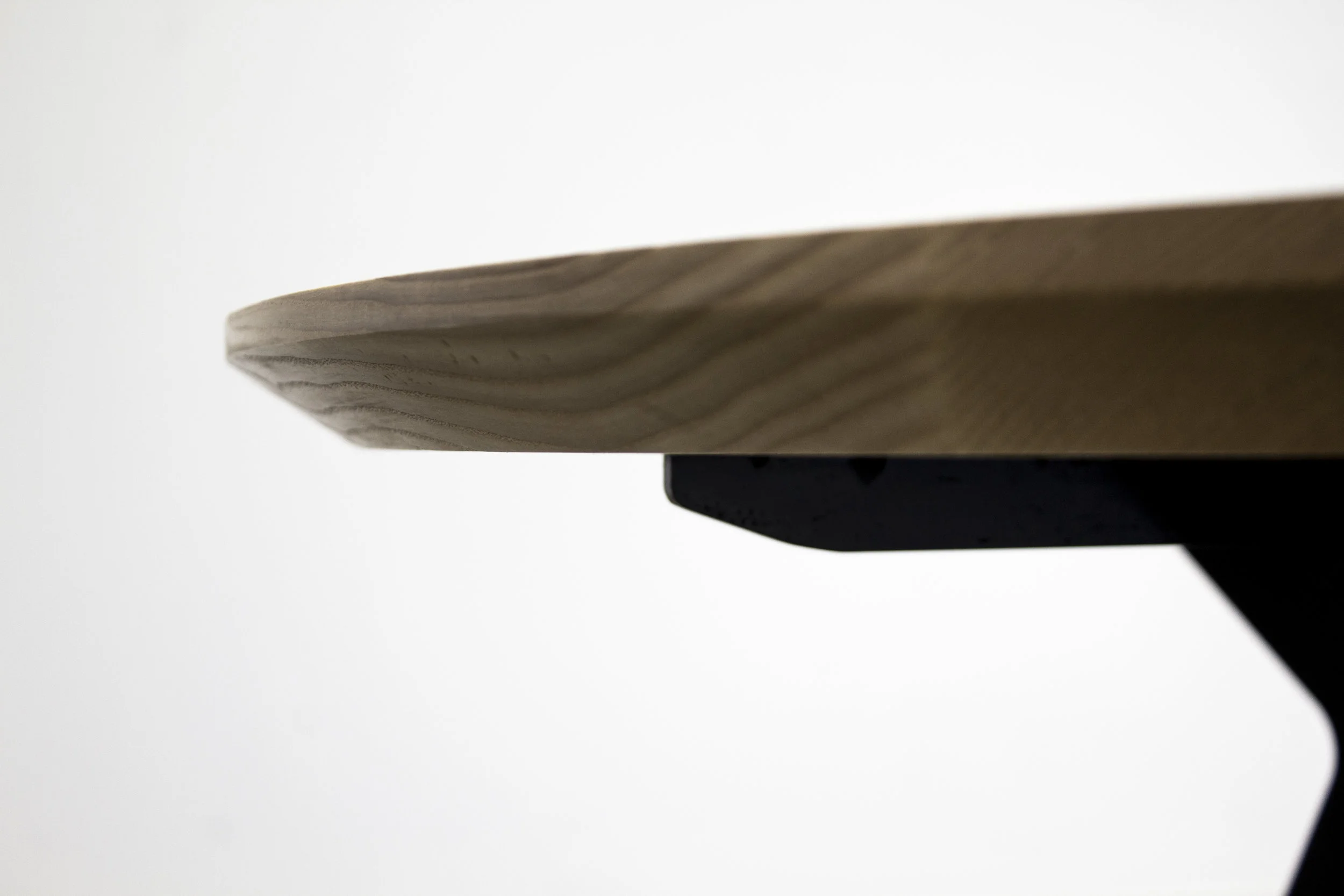

Beveled Edge

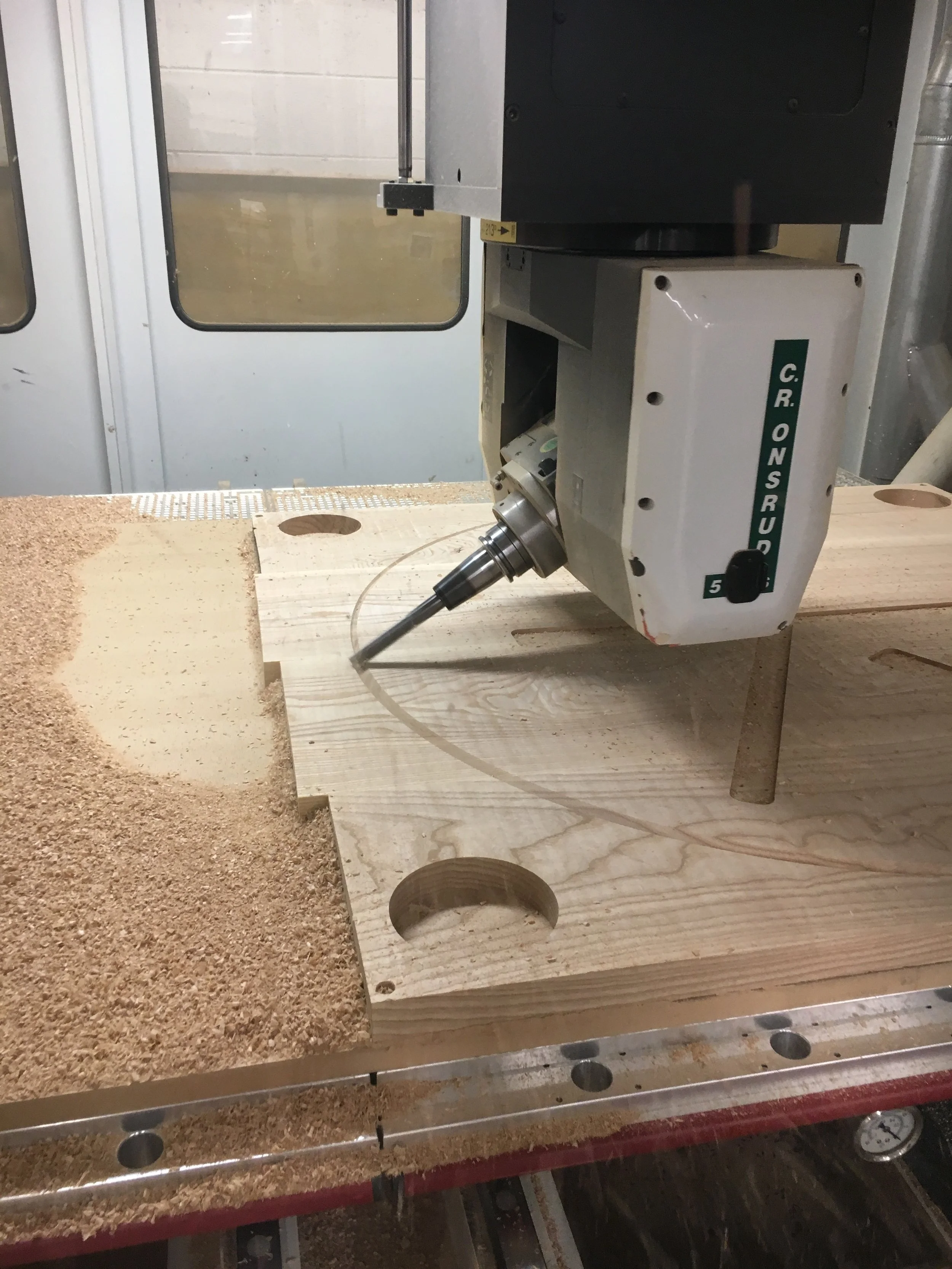

// 5-Axis Swarf Cut
Parts
// Ash Top (1x)
// Blackened Steel Batten (1x)
// Blackened Steel Legs (3x)
// Black Leveling Mounts (3x)
// Black Cap Nuts (2x)
// Threaded Rod (1x)
// Thread-Forming Screws (48x)

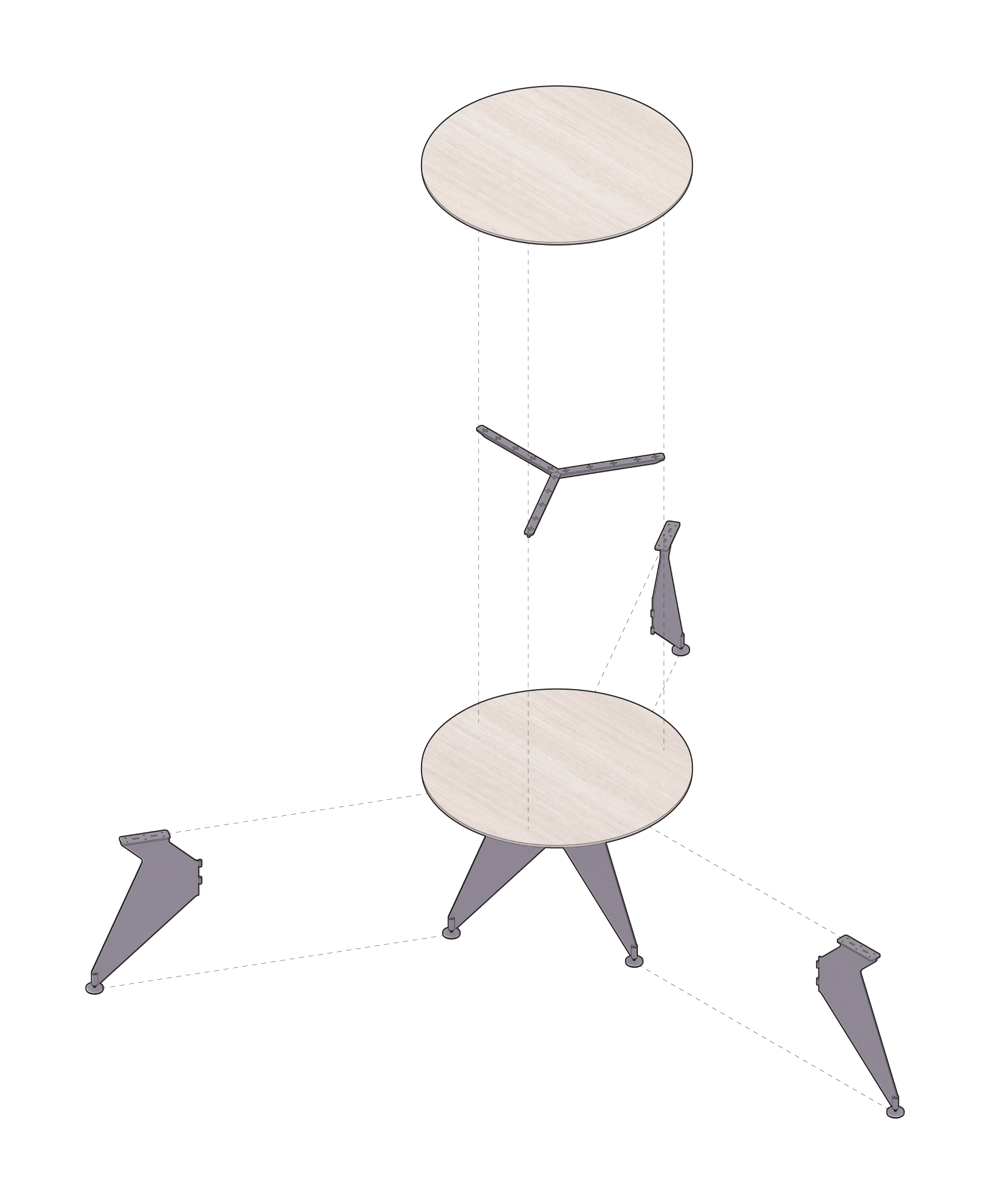

Assembly
// Exploded Axon

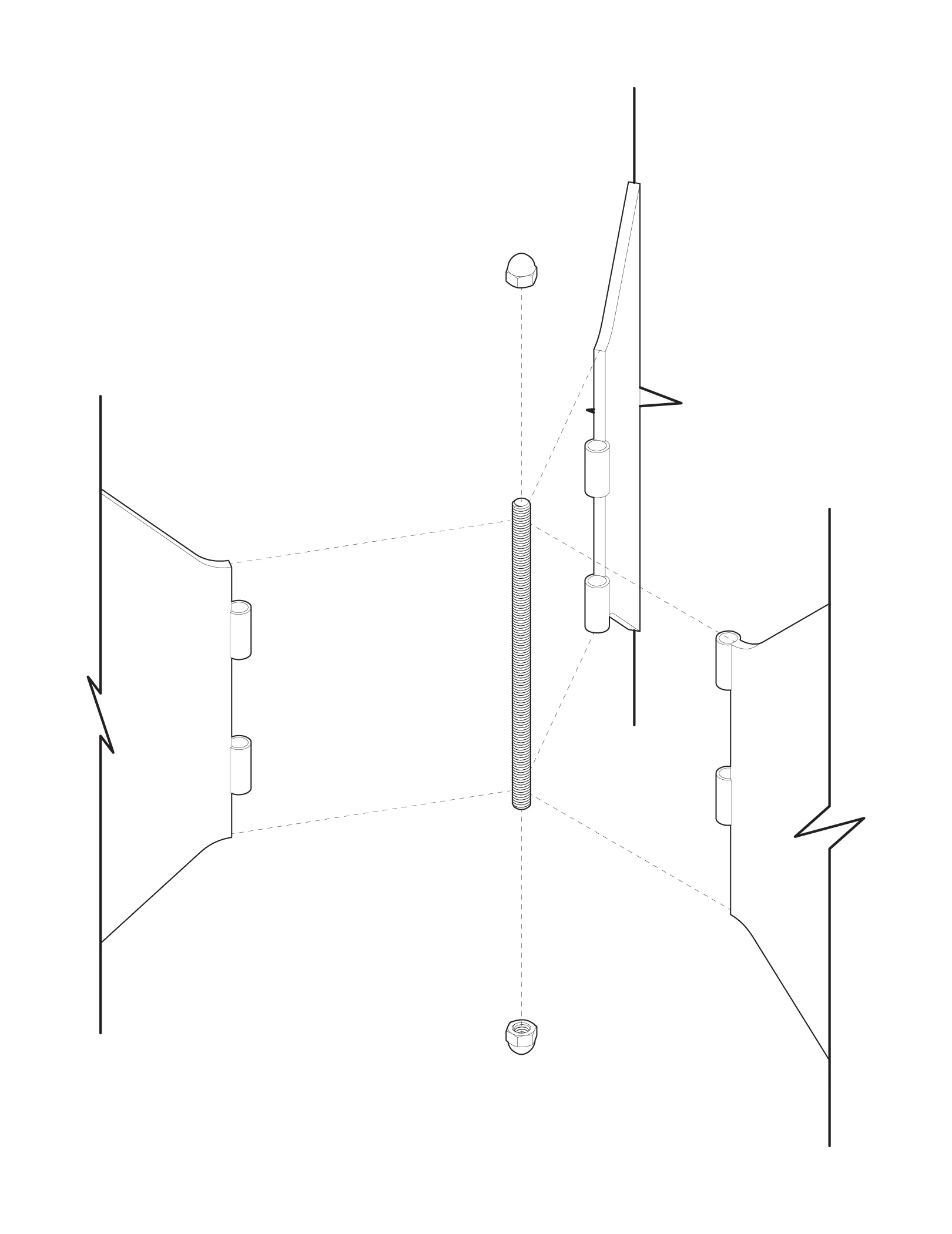

Detail 01
// Butterfly Hinge
Detail 02
// Foot Assembly
